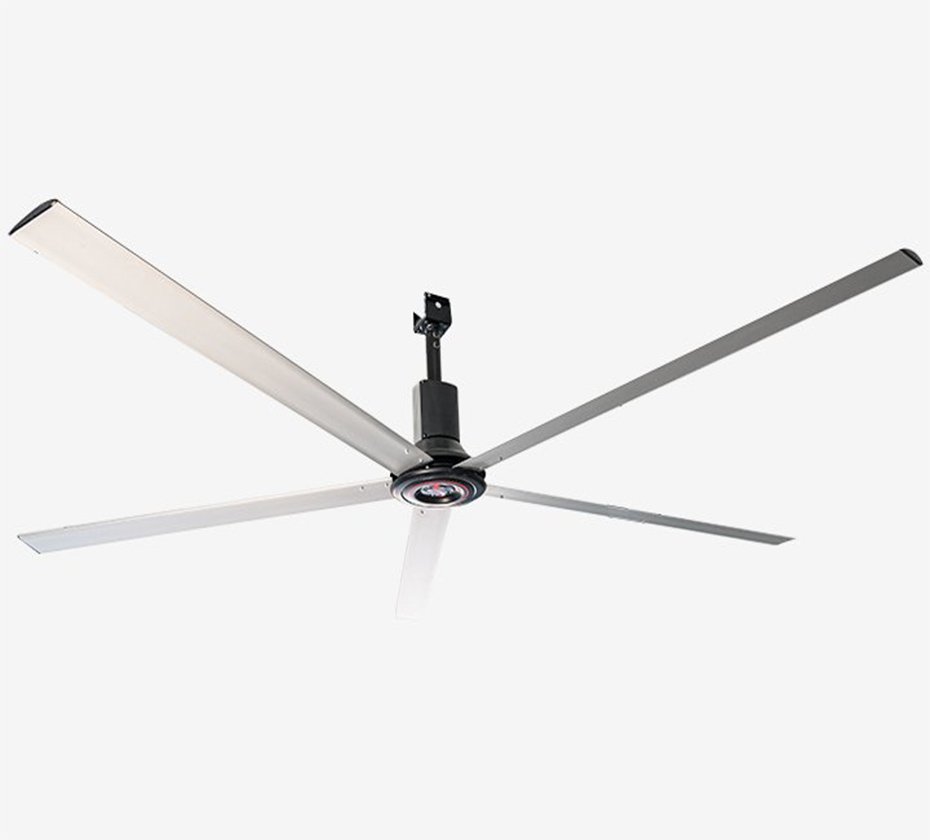

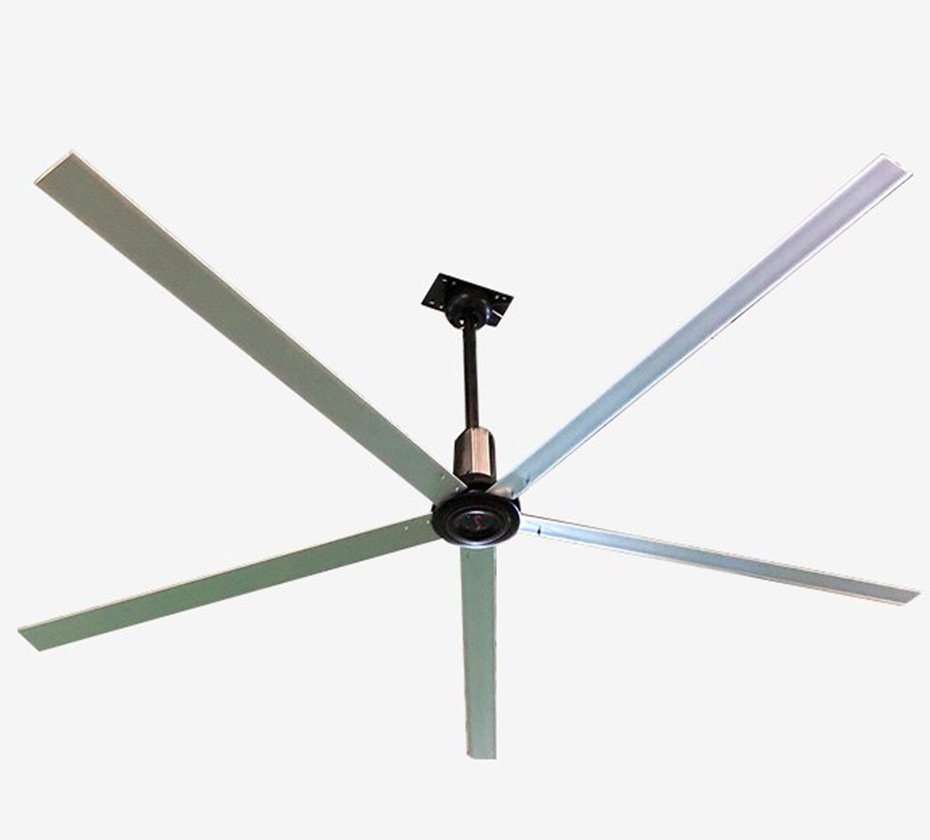

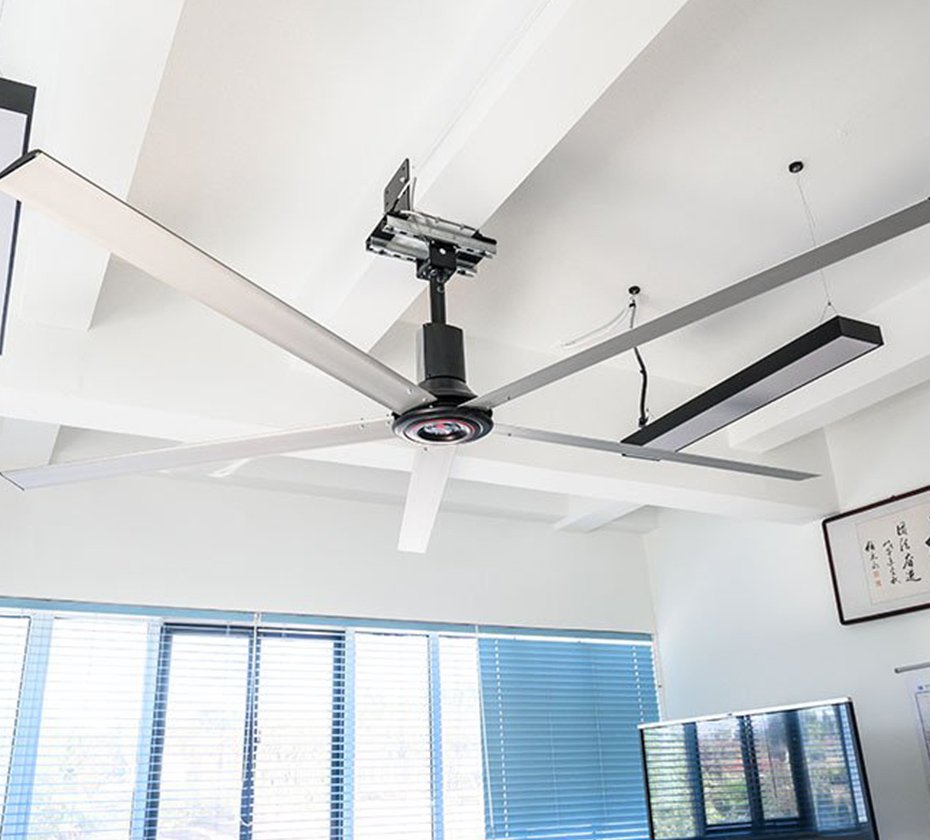

The M600 combines beautiful design with energy-efficient power. Its blades were developed and designed and tested by experts in computational fluid dynamics for maximum performance. The motor features low noise, low energy consumption, and low weight, making it ideal for commercial spaces, schools, warehouses, and more. The M600 series was developed to help designers, architects, and engineers improve occupant comfort while also reducing a building's carbon footprint. It provides comfortable airflow, effectively cooling in the summer and balancing temperatures in the winter. The M600 performs best in medium-sized spaces with ceiling heights of 2.75 meters (9 feet) to 7 meters (23 feet). It is available in diameters ranging from 3 meters (10 feet) to 4.27 meters (14 feet) to fit your building's needs.
Models | Diameter | Number of Blades | Weight | Max Rotation Speed | Maximum air volume (AMCA 230-15) * | Maximum air volume (AMCA 230-99) * | Power usage (maximum speed) | Coverage area (m2) | Recommended fan blade height (m) |
M600-8 | 2440 mm | 5 | 26 kg | 122 RPM | 33,090 m³/h | 46,795 m³/h | 85 W | 180 m2 | 5-7 |
M600-10 | 3050 mm | 5 | 29 kg | 112 RPM | 77,300 m³/h | 109,320 m³/h | 155 W | 230 m2 | 5-7 |
M600-12 | 3660 mm | 5 | 32 kg | 98 RPM | 115,360 m³/h | 163,145 m³/h | 240 W | 350 m2 | 5-7 |
M600-14 | 4270 mm | 5 | 35 kg | 74 RPM | 136,250 m³/h | 192,288 m³/h | 190 W | 470 m2 | 5-7 |
General specifications | |
Voltage | 110VAC - 240VAC Single Phase, 50Hz / 60Hz |
Sound @ Max Speed | <40 dBA |
IP Rating | IP45 Indoor/Outdoor |
Temperature Rating | 一 10℃ / + 50 ℃ |
Certifications | CE, CB ICE Certification |
Controller | HMI for 1-10 fans (sold separately) |
Mounting | Fully Adjustable |
Mount to Blades Height | 1m Standard |
Warranty | 3 Years on all Parts - Extended Warranty Optional |
● 5 anodized aluminum fan blades
● Custom paint colors available
● Quick and easy installation
● Schedule and timer modes available
● Energy efficient operation
● Made in Europe
● Networked HMI for up to 10 fans
● CE, EN and IEC compliant
● 10 speed settings
● Multiple redundancy for all critical components.
● Reverse mode for dehumidification
● Includes blades, motor, electronics and installation

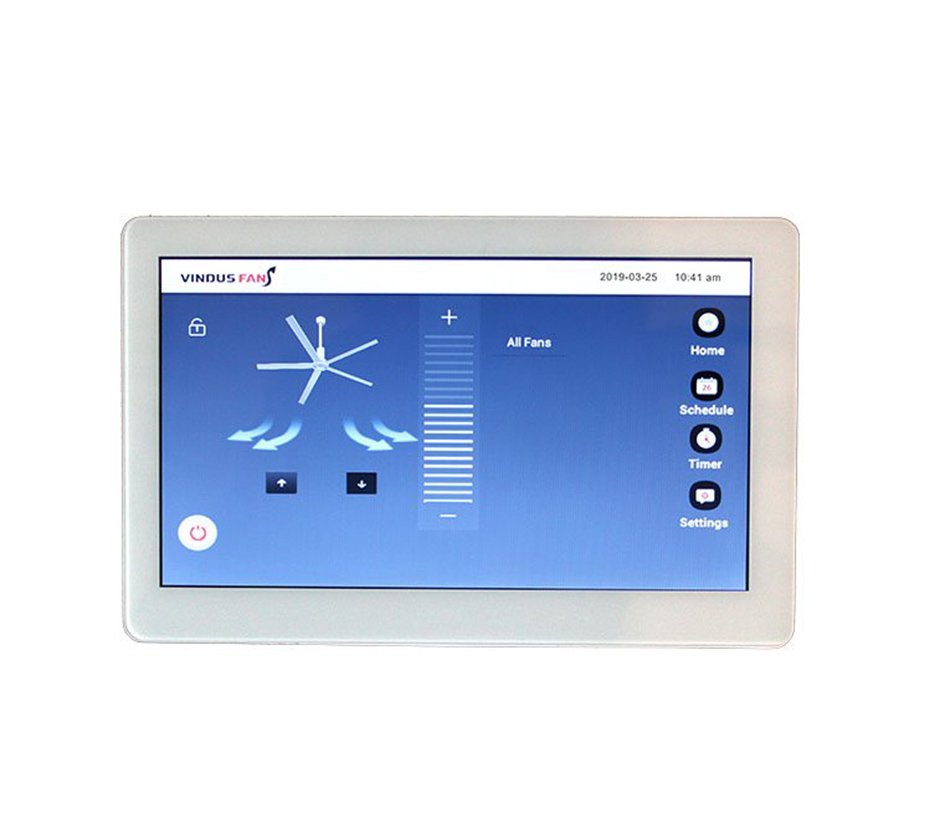

◆ Compatible with M600 and M800
◆ Portable, easy-to-use touchscreen interface
◆ 7'' TFT display
◆ Manually or automatically control the run time, speed and direction of up to 10 Vindus fans from one central location
◆ Schedule your fan (or group of fans) to turn on and off for seamless operation
◆ Forward and reverse operation
