Inna Machinery Equipment (Shanghai) Co., Ltd. was established in 2016, committed to providing customized industrial products that improve work environments, increase labor efficiency, and reduce labor intensity for customers.

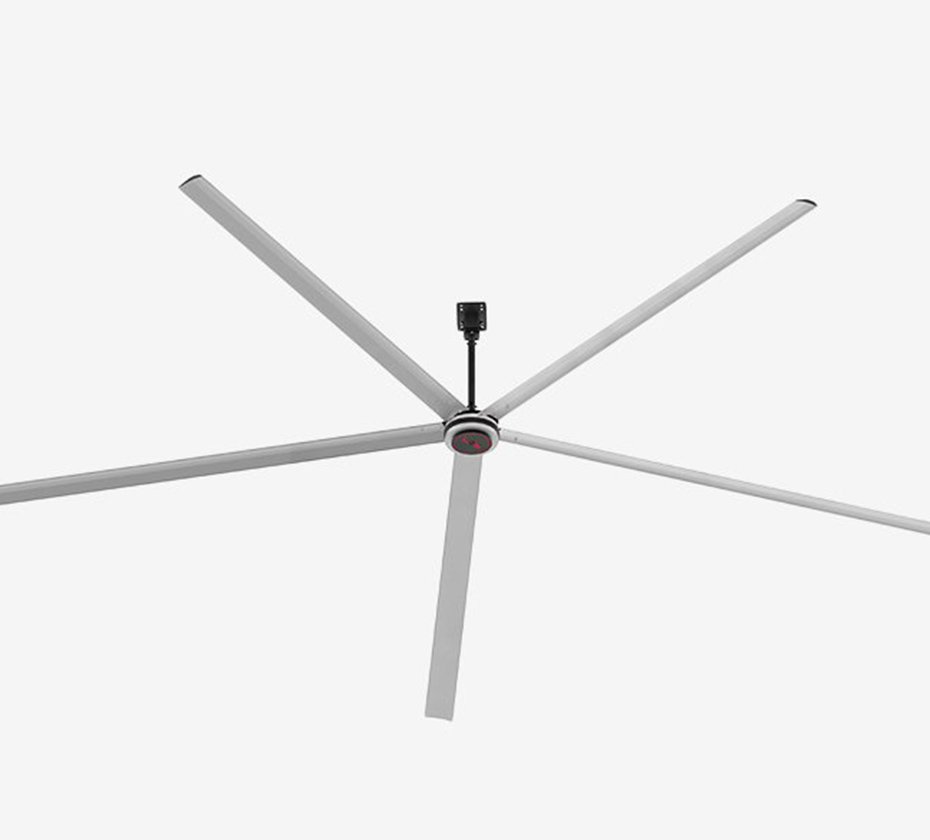

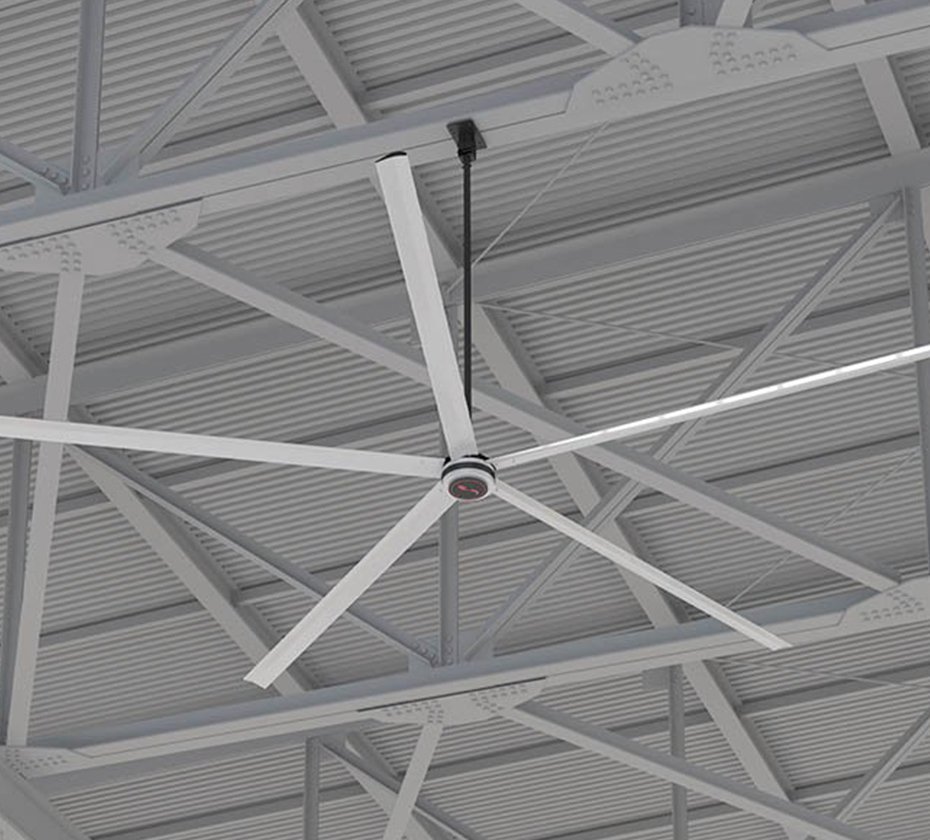

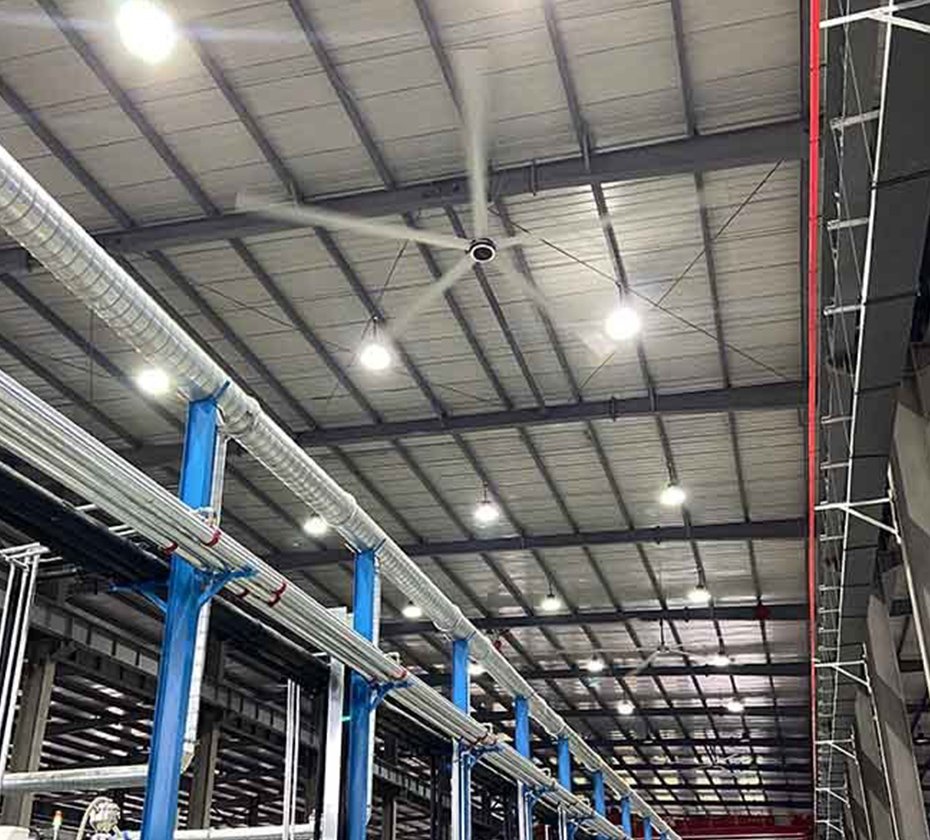

The M750 delivers high performance cooling with its permanent magnet synchronous motor (PMSM), but manages to consume just 700 watts of energy at its top speed. That unique combination enables the M750 to provide extreme value in large industrial spaces and elsewhere. The fan’s energy savings will allow you to earn a fast return on your investment. The M750 Series has been designed for maximum value even when it comes to installation. It features a built-in HMI that’s located at floor level to reduce installation and maintenance costs. Its sleek design only requires a single cable from the ceiling to the floor in order to operate it. The M750 Series provides comfortable quiet airflow in the summer and equalizes temperatures in the winter. It works best in large spaces, with ceiling heights ranging from 7m (23ft) to 15m (50ft). The M750 Series is available in diameters ranging from 4.8m (16ft) to 7.2m (24ft) to suit your building’s needs.
Fan Models \ Specifications | Diameters | Number of Blades | Weight | Max Rotation Speed | Power Usage(Watt) | Covered Area(m2) | Recommended Blade Height (m) |
M750-16 | 4.9 m | 5 | 100 kg | 78 RPM | 413 | 600 | 7- 10 m |
M750-18 | 5.5 m | 5 | 104 kg | 69 RPM | 490 | 750 | 7- 10 m |
M750-20 | 6.1 m | 5 | 108 kg | 60 RPM | 580 | 920 | 7- 10 m |
M750-24 | 7.3 m | 5 | 113 kg | 57 RPM | 835 | 1300 | 7- 10 m |
General specifications | ||||
Voltage | 208VAC - 240VAC Single Phase, 50Hz / 60Hz | |||
Sound @ Max Speed | <50 dBA | |||
IP Rating | IPX5 Indoor/Outdoor | |||
Temperature Rating | -10℃ / +50℃ | |||
Certifications | CE, CN, IEC Certification | |||
Controller | Forward direction 0-100% | |||
Mounting | Fully Adjustable | |||
Mount to Blades Height | 1m Standard | |||
Warranty | 3 Years on all Parts - Extended Warranty Optional |

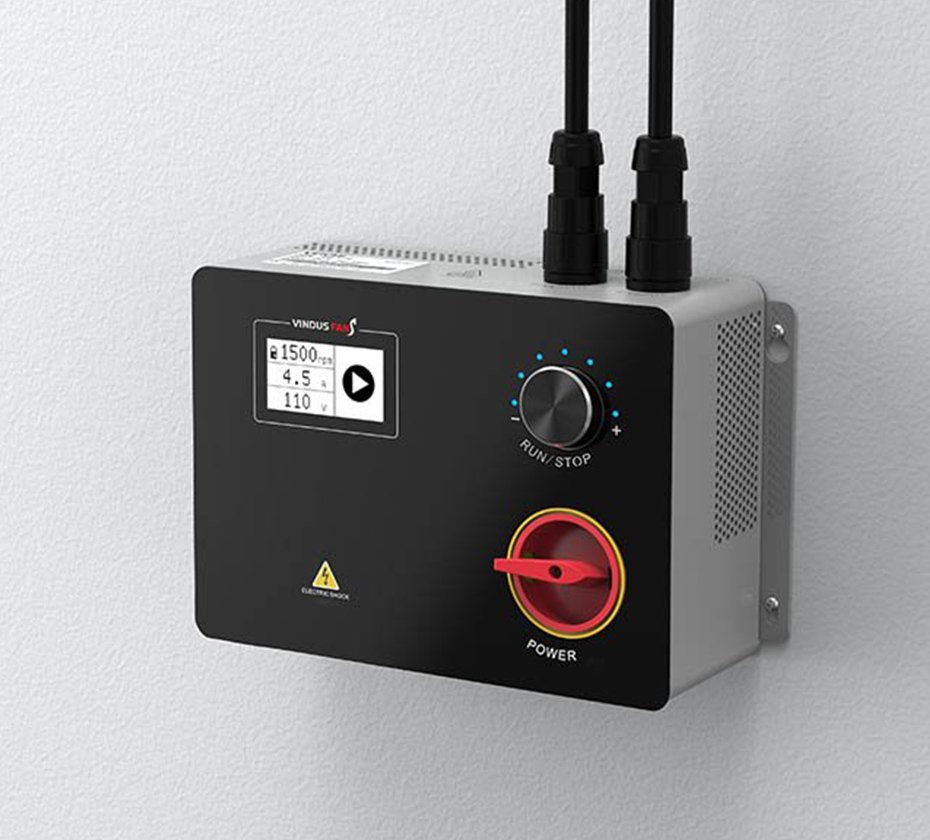

● Compatible with M650 and M750
● Integrated wall mount design
● LCD display
● Easily operate up to 20 Vindus fans with this digital controller
● Easy command with forward function with 7 speed levels
● Multi-function potentiometer with LED status indicator
● Wireless remote control (optional)
● Built-in smart Internet of Things (IoT) module (optional)
◆ Compatible with M650 and M750
◆ Integrated wall mount design
◆ LCD display
◆ Easily operate up to 20 Vindus fans with this digital controller
◆ Easy command with forward function with 7 speed levels
◆ Multi-function potentiometer with LED status indicator
◆ Wireless remote control (optional)
◆ Built-in smart Internet of Things (IoT) module (optional)
If you have any questions or needs about this product, please fill out the form below and we will contact you as soon as possible.
