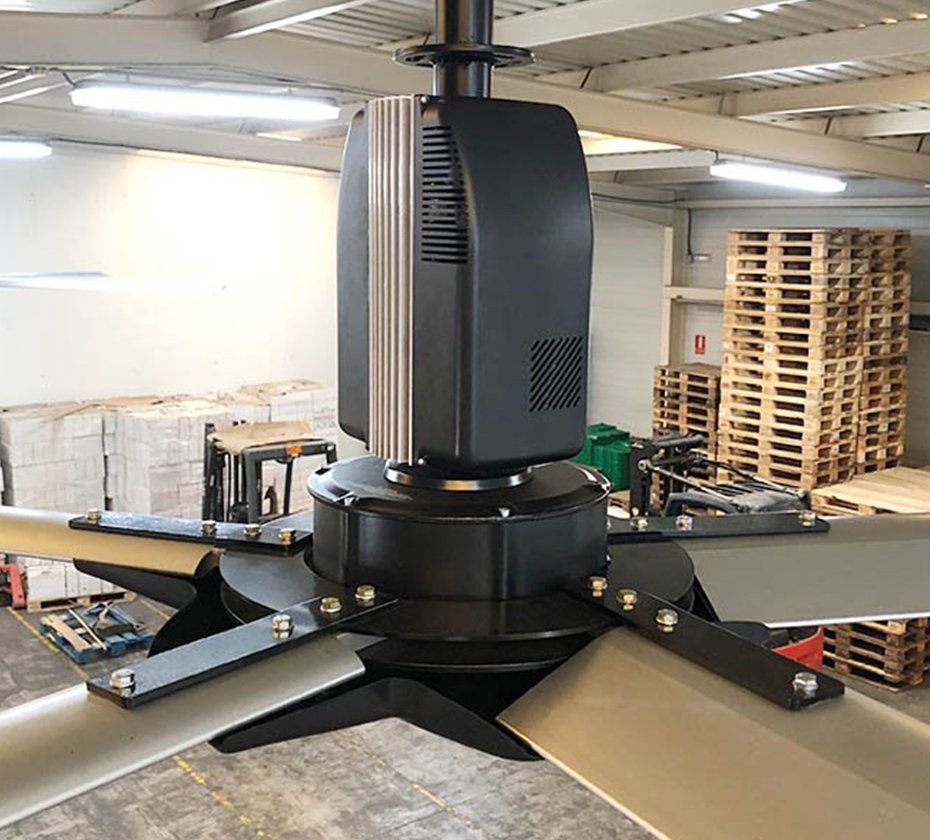

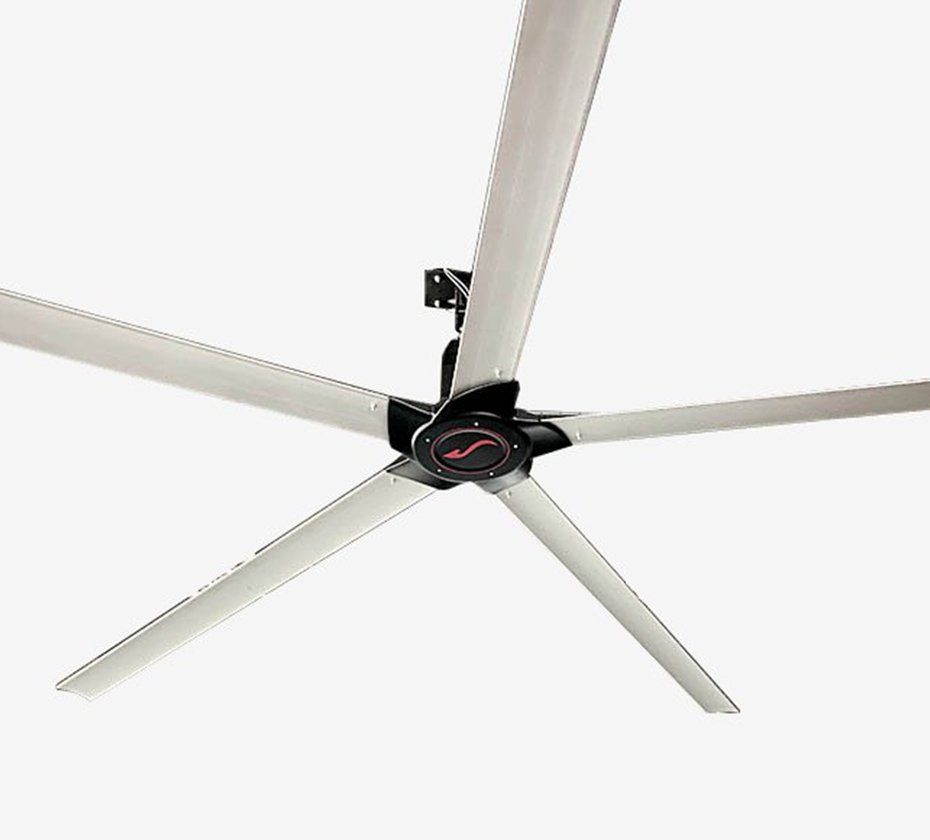

The M800 offers the power of a high-performance fan in a design that is aesthetically pleasing. It consumes only 950 watts at top speed, enabling the fan to deliver maximum performance in commercial and industrial spaces without costing a fortune to run. The M800 series has been designed to help users with large spaces equalize temperatures in the winter and provide gentle airflow in the summer. These models work best in buildings with ceiling heights ranging from 7 meters (23 feet) to 15 meters (50 feet). With a diameter of 7.3 meters (24 feet), the M800 series can meet the needs of all large buildings. This model is extremely quiet and is designed for customers who are looking for the highest performance HVLS blower.
Model | Diameter | Number of blades | Weight | Maximum speed | Maximum air volume | Maximum air volume | Power usage (maximum speed) | Coverage area (m2) | Recommended fan blade height (m) |
M800-24 | 7315 mm | 5 | 113 kg | 49 RPM | 508,825 m³/h | 719,478 m³/h | 950 Watts | 1330 m2 | 7-10 |
General specifications | |
Voltage | 208VAC - 240VAC Single Phase, 50Hz / 60Hz |
Sound @ Max Speed | <50 dBA |
IP Rating | IP45 Indoor/Outdoor |
Temperature Rating | 一 10℃ / + 50℃ |
Certifications | CE, CB ICE Certification |
Controller | HMI for 1-10 fans (sold separately) |
Mounting | Fully Adjustable |
Mount to Blades Height | 1m Standard |
Warranty | 3 Years on all Parts - Extended Warranty Optional |
● 5 anodized aluminum blades
● Custom paint colors available
● Quick and easy installation
● Schedule and timer modes available
● Energy efficient operation
● 5-year motor warranty
● Motor and drive imported from the USA
● Web HMI, up to 10 fans
● CE, EN and IEC compliant
● 10 speed settings
● Multiple redundancy for all critical components.
● Reverse mode for exhaust air
● Includes blades, motor, electronics and installation

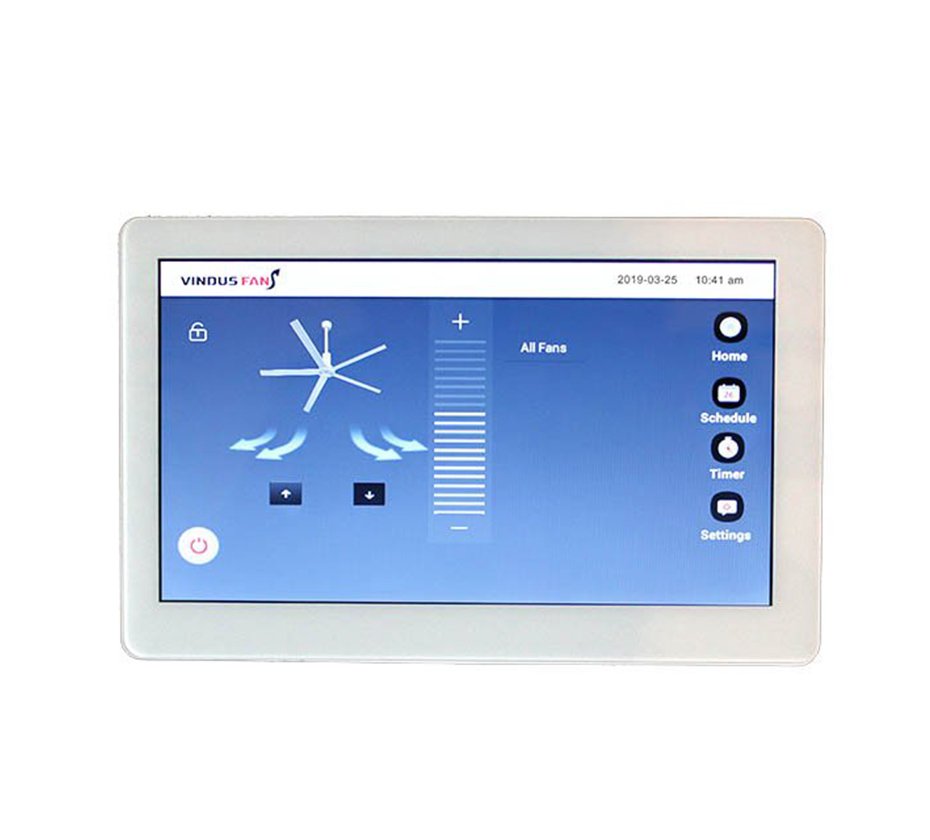

◆ Compatible with M600 and M800
◆ Portable, easy-to-use touchscreen interface
◆ 7-inch TFT display
◆ Manually or automatically control the run time, speed and direction of up to 10 Vindus fans from one central location
◆ Schedule your fan (or group of fans) to turn on and off for seamless operation
◆ Forward and reverse operation
