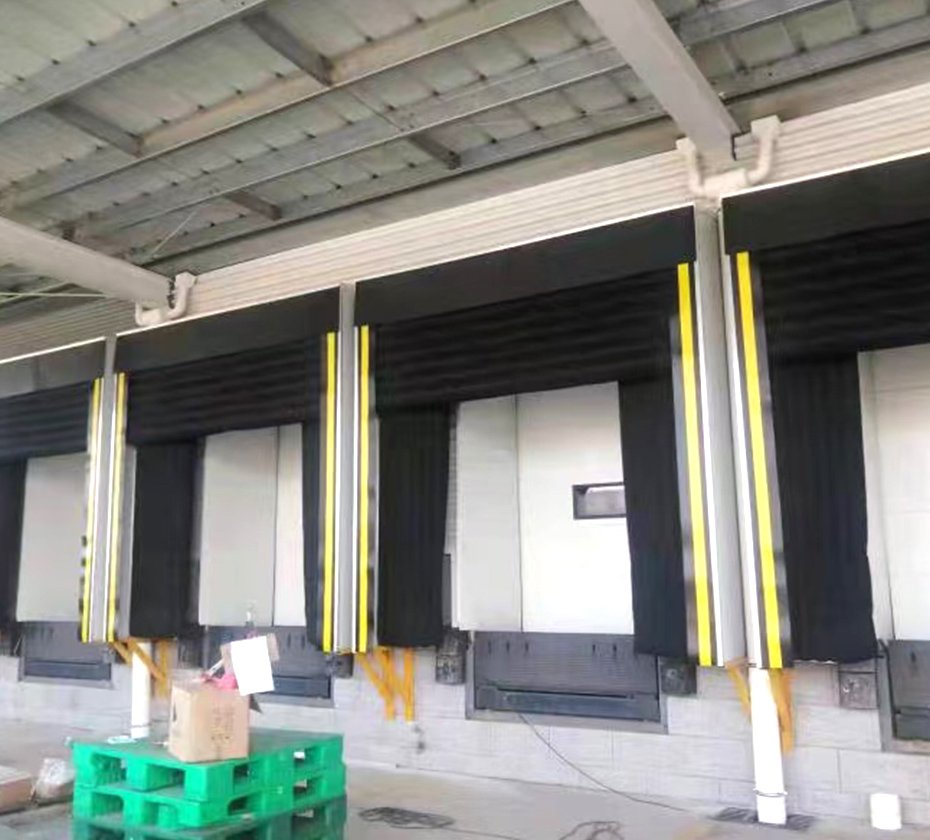

The aluminum alloy frame foldable door seal series is an ideal solution for medium to heavy-duty loading and unloading areas. The front curtain panel, made from special PVC material, offers high elasticity, wear resistance, and high tensile strength. During loading and unloading, the rear of the vehicle enters the door seal. The top and side curtain panels closely align with the vehicle to ensure a tight seal.
width（mm） | 3000 3200 3400 |
height（mm） | 3000 3200 3400 4400 |
Top Curtain Pane | |
Standard Configuratio | Single Layer |
Optional Configuration | Double Laye |
Profile Colo | Natural Aluminum（RAL9006) |
Front Curtain Panel | |
Longitudinal Tensile Strength | Greater than550 |
Transversal Tensile Strength | Greater than900N |
Maximum Tensile Strength | 250N/mm² |
Metal Friction Coefficient | 0.3 |
PVC Friction Coefficient | 0.4 |
Thickness | 3mm |
Unit Weight | 3.6kg/mm |
Operating Temperature | -35℃+90℃ |
Side PVC Curtain Fabric | |
Tensile Strength | 250N |
Thickness | 0.5mm |
Unit Weight | 0.7kg/mm |
Operating Temperatur | -35℃+70℃ |
Aluminum Alloy Frame | |
Rear Profile Dimensions | 50*44mm |
Front Profile Dimensions | 45*44mm |
Frame Dimensions | 50*25*2.5mm |
Front Pressure Plate Dimensions | 34*4.8mm |
Standard | Optional | |
Door Seal Thickness | 600mm | 900mm |
Top Curtain Panel | Single Layer | Double Layer |
Profile Color | Natural Aluminum（RAL9006） | Please Inquire |
Sealing | Small/Big Corner Pads at the Bottom |
